5080 Digital Flexo CTP Phaj Ua Tshuab

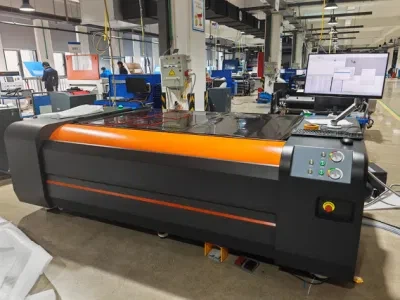

EcooGraphix Me Me Flexo CTP Phaj Tshuab Rau Digital Relief Printing Phaj

Qauv: EcooSetter Flexo FL-400


EcooGraphix Flexo CTP Tshuab yog qhov zoo tshaj plaws rau cov ntawv sau zoo, cov cim lag luam, lossis pob luam ntawv. Nws muab cov kev daws teeb meem zoo thiab raug nqi rau kev ua haujlwm niaj hnub luam ntawv. Nrog lub peev xwm los nthuav tawm cov cua sov corrosive zaj duab xis, digital nyem luam ntawv phaj (dej-ntxuav), digital flexo phaj (dej-ntxuav), digital flexo phaj (cov kuab tshuaj-raws li), thiab thermal PS phaj, nws yog ib lub tshuab muaj ntau yam zoo kawg uas muab cov txiaj ntsig zoo tshaj plaws.


Specification



Qauv	FL -400		FL-600E(EM)	FL-600S(SM)	FL-800E	FL-800S	FL -1500
Laser Channel	16-channel		16-channel	32-channel	16-channel	32-channel	32-channel
Tso zis ceev	1.25m²/h		1.25m²/h	2.5m²/h	1.25m²/h	2.5m²/h	1.8-2.0m²/h
Max. Dav	430mm x 330 hli		680 x 430 mm	800 x 660 mm	800 x 660 mm	800 x 660 mm	1524mm x 1067 hli
Phaj Thickness	0.14mm -1.7mm		0.15mm -1.7mm	0.15mm -1.7mm	0.15mm -1.7mm	0.15mm -1.7mm	0.95mm -3.84mm
Laser zog	Siab zog semiconductor laser diode						Lub teeb valve laser
Phaj Hom	Digital nyem flexo phaj (dej-ntxuav), Digital flexo phaj (dej-ntxuav), Digital flexo phaj (hloov-ntxuav) Hlau raws li daim hlau (Dej / dej cawv ntxuav tau) yog thov rau EM / SM series				Digital nyem flexo phaj (dej-ntxuav), Digital flexo phaj (dej-ntxuav), Digital flexo phaj (hloov-ntxuav) Steel raws li daim hlau (Dej / cawv ntxuav tau)		Digital flexo phaj (dej-ntxuav thiab hnyav-ntxuav)
Daim ntawv thov	Label thiab Trademark						Cov cim lag luam
Kev daws teeb meem	4000 dpi						2540 lossis 5080 dpi
Phaj Loading	Manual load thiab unload
Interface	USB2. 0
Kho kom haum	Dynamic auto-focus
Ntaus Loj (WxDxH)	830 x 630 x 1055 mm	1087 x 770 x 1000 mm			1630 x 1170 x 965 mm		2410 x 1240 x 1120 mm
Net nyhav	Kwv yees li 280Kg	400 Kg			800 Kg		1300 Kg
Hwj chim	220V / 50Hz, 60Hz, Flexo Tshuab 0.5KW + Nqus 1.5KW	220V / 50Hz, 60Hz, Mainframe 1.5KW + Nqus 1.1KW			220V / 50Hz, 60Hz, mainframe 0.6KW + Nqus 1.1KW
Ib puag ncig	Pom zoo kub: 18-30ºC, Humidity: 10%-80%



Yam ntxwv



Lub phaj-loading tshuab no yooj yim heev rau siv. Tsuas tso koj lub phaj thiab nias lub pob, thiab lub tshuab yuav thauj khoom hauv vib nas this. Nws kuj muaj ntau yam - muaj peev xwm lis cov phaj ntawm ntau yam thicknesses. Ntxiv rau, lub kaw lus autofocus ua kom cov ntsiab lus ntse nrog txhua qhov kev siv. Lub nruas ruaj khov txawm tias thaum lub sij hawm kev sib hloov ceev ua tsaug rau nws qhov ceev thiab muaj txiaj ntsig nws pib sib npaug. Zuag qhia tag nrho, qhov no yog lub tshuab zoo kawg nkaus uas ua rau cov phaj thauj khoom sai dua thiab meej dua.

Nws pib hloov ntawm laser channel: Lub laser system yog nruab nrog ib tug tsis siv neeg channel hloov feature uas xyuas kom meej uninterrupted ntau lawm nyob rau hauv cov ntaub ntawv ntawm tej channel puas. Qhov system no hloov mus rau qhov ntev tshaj plaws ua haujlwm sib law liag kom txuas ntxiv tso tawm. Tsis tas li ntawd, peb lub cev siv lub cev muaj zog uas paub txog nws qhov tseeb, kev yooj yim, thiab kev ntseeg tau. Thaum kawg, peb lub tshuab laser boasts lub neej ntev ntawm ntau tshaj 10, 000 teev thiab tau txais kev txhawb nqa los ntawm kev lav rau cov khoom seem, ua kom muaj kev ntseeg siab thiab kev thaj yeeb nyab xeeb rau peb cov neeg siv khoom.



Kev tsim khoom thiab ntim khoom

Los ntawm kev tsim khoom mus rau kev xa khoom, peb ua txhua yam kom zoo zoo los lav cov khoom zoo thiab kev pabcuam rau cov neeg siv khoom.

Kev teeb tsa:UK, Ltalis, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria thiab lwm yam.



Daim ntawv pov thawj



FAQ



Q1: Dab tsi cov khoom koj muab?



A: Peb muab ntau yam khoom xws li Prepress 4up thiab 8up Online / Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Phaj, Offset Inks, Offset Printing Pam, thiab Postpress Packing Equipment. Peb ua kom yooj yim rau koj kom tau txais ob qho khoom siv thiab cov khoom siv uas koj xav tau hauv ib qho chaw yooj yim, thiab peb lub tuam txhab muab kev pabcuam tom qab muag zoo.



Q2: Koj lub Hoobkas nyob qhov twg?

A: Peb lub Hoobkas rau CTP tshuab yog nyob rau hauv Hangzhou nroog, uas tuaj yeem ncav cuag los ntawm tsheb ciav hlau los ntawm Shanghai hauv 1.5 teev xwb. Koj tuaj yeem tuaj xyuas peb thiab pom peb cov chaw tsim khoom.



Q3: Koj lub tshuab CTP puas muaj ntawv pov thawj?



A: Yog lawm, tag nrho peb cov tshuab CTP yog SGS thiab CE certified, kom ntseeg tau tias peb cov neeg muas zaub tau txais cov khoom zoo tshaj plaws.



Q4: Koj puas tuaj yeem muab kev pabcuam Workflow thiab RIP ib yam nkaus?



A: Yog lawm! Peb tuaj yeem muab peb cov neeg siv khoom nrog Workflow Brainnew thiab RIP Compose V12. Peb lub hom phiaj yog los muab cov kev pabcuam dav dav uas ua tau raws li peb cov neeg siv khoom xav tau.

Q5: Yuav ua li cas txog kev txhim kho thiab kev pab cuam tom qab muag?

A: EcooGraphix muaj kev pabcuam kev teeb tsa ntawm qhov chaw thiab kev cob qhia rau koj cov cuab yeej CTP tshiab. Tus neeg yuav khoom yuav yog lub luag haujlwm rau tus nqi ntawm daim pib, nqi kev pabcuam, thiab kev pabcuam hauv zos, tab sis nco ntsoov tias peb pab neeg yuav muaj 24/7 los teb cov lus nug lossis daws teeb meem uas yuav tshwm sim thaum lub sijhawm teeb tsa.

Tsis tsuas yog peb muaj kev paub dav dav siv CTP kev teeb tsa thoob ntiaj teb, tab sis peb kuj muaj coob tus neeg siv kawg uas tau yuav peb cov khoom ncaj qha los ntawm EcooGraphix Tuam Tshoj. Peb pab pawg kws tshaj lij kev pabcuam zoo siab los txhawb cov kev teeb tsa no nyob deb, nrog rau kev mus ntsib hauv tsev kom ntseeg tau tias txhua yam ua haujlwm zoo.

Cov neeg siv kawg cov tshuab luam ntawv no txhua tus khiav CTP systems nrog kev txaus siab tag nrho vim peb cov khoom zoo, kev pabcuam chaw taws teeb seamless, kev cob qhia zoo thiab kev tswj xyuas. Yog tias koj yog lub tshuab luam ntawv uas tab tom txiav txim siab yuav ncaj qha los ntawm EcooGraphix Tuam Tshoj, tsis muaj teeb meem ntawm kev teeb tsa, kev cob qhia thiab kev pab cuam tom qab muag. Peb lav koj txaus siab.
