Thermal CTP phaj tshuab

EcooGraphix Thermal CTP (Computer To Plate) Phaj Ua Tshuab yog thawj Prepress tsim nyog ntawm cov ntawv xov xwm luv luv offset lossis luam ntawv lag luam. Nws tuaj yeem tso cov duab ntawm lub khoos phis tawj los luam CTP phaj ncaj qha los ntawm lub tshuab CTP thiab txuag cov yeeb yaj kiab thiab ua haujlwm.

Xa kev nug

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Khoom Taw qhia

EcooGraphix Offline Phau Ntawv Qhia Offset Thermal CTP Platesetter
Ecoosetter T400/800 Series

Daim ntawv thov
EcooGraphix Thermal CTP (Computer To Plate) Phaj Ua Tshuab yog thawj Prepress tsim nyog ntawm cov ntawv xov xwm luv luv offset lossis luam ntawv lag luam. Nws tuaj yeem tso cov duab ntawm lub khoos phis tawj los luam CTP phaj ncaj qha los ntawm lub tshuab CTP thiab txuag cov yeeb yaj kiab thiab ua haujlwm.
EcooGraphix T400 series thermal CTP yog rau A2 lossis B2 daim ntawv loj, qhov siab tshaj plaws ntawm phaj: 800 × 690mm, nrog cov zis ceev 16 txog 28 daim ib teev.
T800 series thermal CTP yog rau A1 lossis B1 daim ntawv loj, qhov siab tshaj plaws ntawm phaj: 1,163 × 940mm, nrog cov zis ceev 16 txog 28 daim ib teev.
Los ntawm EcooGraphix CTP, cov neeg siv khoom tuaj yeem tau txais cov duab tso zis zoo heev, txhim khu kev qha ruaj khov, tsawg qhov chaw nyob nrog ntau qhov yooj yim.

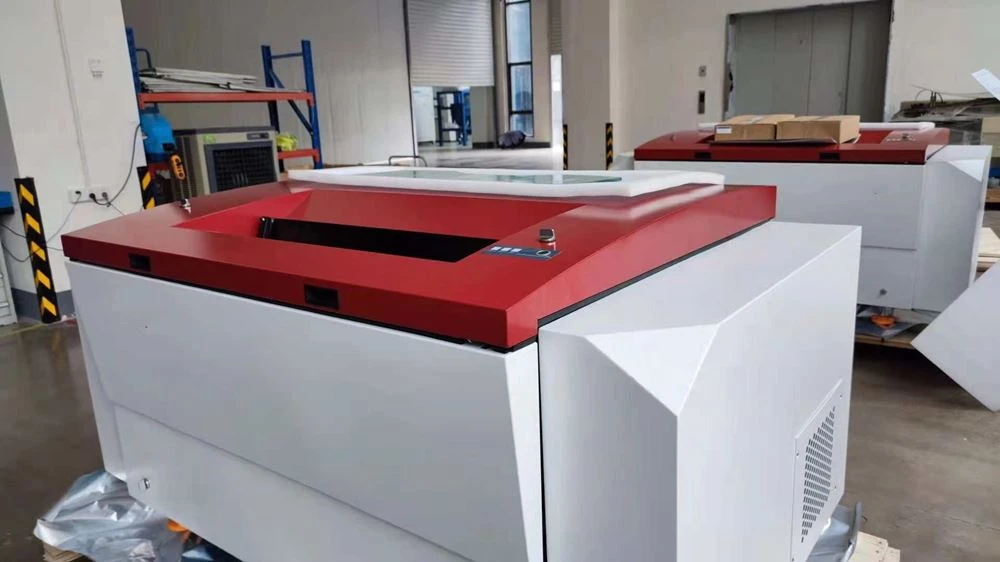

EcooSetter T400 Series Phau Ntawv Thermal CTP Tshuab
Qauv: EcooSetter T-400 F/S/E, Max Phaj Loj: 800mm x 690mm
Laser wavelength: 830nm

ECOO SETTER T -400 Series Phau Ntawv Qhia Thermal CTP Specifications
Qauv	T-400F	T-400S	T-400E
Kev nthuav tawm los ntawm	Sab Nraum
Kev Ntsuas System	48-channel	32-channel	24-channel
	Discrete 830nm laser diode
Tshaj tawm	28 daim / teev	22 daim / teev	16 daim / teev
	800mm x 660mm, 2400dpi
Plate Si es	Max. 800mm x 690mm Min. 400 x 300 mm
Hom Media	Qhov zoo/tsis zoo 830nm thermal CTP phaj
Phaj Thickness	{0}.14mm txog 0.30mm
Kev daws teeb meem	2400dpi, 1200dpi yeem
Rov ua dua	± 5μm (kev nthuav tawm txuas ntxiv rau 4 zaug lossis siab dua ntawm tib lub phaj nrog qhov kub ntawm 23 degree thiab av noo ntawm 60 feem pua)
Interface	USB 2 0
Phaj Loading	Semi tsis siv neeg
Net nyhav	800 KGS
Tshuab Loj	1900x1200x1000 (WxLxH) hli
Fais fab mov	Ib theem: 220AC, ntxiv rau 6 feem pua, - 10 feem pua, Kev siv hluav taws xob: 4KW
Ib puag ncig	Pom zoo:21-25 degree , Max.18-26 degree , av noo:40-70 feem pua

EcooSetter T800 Series Phau Ntawv Thermal CTP Tshuab
Qauv: EcooSetter T-800 F/S/E, Max Phaj Loj: 1163mm x 940mm
Laser wavelength: 830nm

ECOO SETTER T-800 Series Thermal CTP Specifications
Qauv	T>-800F	T >-800S	T >-800E
Kev nthuav qhia	Sab Nraum
Diodes duab	64-channel	48-channel	32-channel
	Discrete 830nm laser diode
Tshaj tawm	28 daim / teev	22 daim / teev	16 daim / teev
	1030mm x 800mm, 2400dpi
Phaj Loj	Max. 1,163 × 940mm, Min. 300 × 400 hli
Hom Media	Qhov zoo/tsis zoo 830nm Thermal CTP Phaj
Phaj Thickness	{0}.14mm txog 0.30mm
Kev daws teeb meem	2400dpi (1200dpi yeem)
Rov ua dua	± 5μm (kev nthuav tawm txuas ntxiv rau 4 zaug lossis siab dua ntawm tib lub phaj nrog qhov kub ntawm 23 degree thiab av noo ntawm 60 feem pua)
Interface	USB 2 0
Phaj Loading	Phau ntawv los yog semi-automatic
Net nyhav	900 KGS
Tshuab Loj	2,320 × 1,080 × 960 (L × W × H) hli
Fais fab mov	Ib theem: 200AC, ntxiv rau 6 feem pua, - 10 feem pua, Kev siv hluav taws xob: 4KW
Kev ua haujlwm Ib puag ncig	Pom zoo:21-25 degree , Max.18-26 degree , Humidity:40-70 feem pua

EcooGraphix Thermal CTP Tshuab Lub Zog:
1)Superior dot zoo luam tawm pov thawj los ntawm kev lag luam thoob ntiaj teb:
1 feem pua -99 feem pua dot reproduction ; Mus txog 250lpi kev tshuaj ntsuam, 2400 dpi lossis 1200dpi yeem
2)Tsim nyog:rau tej thermal non-chemical processless phaj lossis thermal CTP daim hlau.
3)Robustness thiab simplicity:lub tshuab muaj zog thiab siv tau yooj yim. Tus neeg siv tus phooj ywg thiab tsim qauv yooj yim kom tsis txhob muaj tib neeg yuam kev.
4)Thoob ntiaj teb cov chav kawm sab saum toj thiab cov khoom tau muab los ntawm cov neeg xa khoom thoob ntiaj teb paub zoo los ntawm Nyiv, Tebchaws Asmeskas, thiab Lub Tebchaws Yelemees
5)Lub neej ntev thiab lav ntawm qhov chaw: laser diodes lub neej ntawm ntau tshaj 10, 000 teev teev. (kwv yees li 20, 0000 daim hlau)
6)Ntev warranty ntawm lub tshuab:3 xyoo warranty (dawb hloov ntawm txhua qhov chaw)
Tus nqi qis ntawm qhov chaw: tom qab 3 xyoo lav, tus nqi qis heev ntawm qhov chaw. Piv txwv li, laser diode ntawm US $ 250 ib thooj.
Kev teeb tsa

FAQ
Q1: 1.Koj cov khoom tseem ceeb yog dab tsi?
A:Peb cov khoom tseem ceeb yog Prepress 4up thiab 8up Online / Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Imagesetter, Processor, Offset Printing Phaj, Offset Inks, Printing Pam;
Peb kuj muab Postpress Ntim thiab cov khoom tiav xws li Die Cutter, Phau Ntawv Binder, Ntawv Box Tshuab, Ntawv Sau Tshuab, Digital Printing Machine thiab lwm yam. Muaj ntau qhov kev txhim kho ua tiav thoob ntiaj teb.
Koj tuaj yeem tau txais cov khoom siv thiab cov khoom siv tag nrho hauv ib qho thiab tsis muaj kev txhawj xeeb txog kev pab cuam tom qab muag los ntawm peb lub tuam txhab.

Q2: Koj lub Hoobkas nyob qhov twg?
A:Peb lub Hoobkas CTP tshuab yog nyob rau hauv Hangzhou nroog, uas yog hais txog 1.5 teev los ntawm lub tsheb ciav hlau los ntawm Shanghai.
Koj zoo siab tos txais tuaj xyuas peb lub Hoobkas!

Q3: Puas muaj ntawv pov thawj rau koj lub tshuab CTP?
A:Yog lawm, Tag nrho peb cov tshuab CTP tau lees paub los ntawm SGS thiab CE.

Q4: Koj puas tuaj yeem muab Kev Ua Haujlwm thiab RIP?
A:Yog lawm, peb tuaj yeem muab Workflow Brain Tshiab thiab RIP Compose V12.

Q5: Yuav ua li cas txog kev txhim kho thiab kev pab cuam tom qab muag?
A: Lub tshuab CTP yog qhov yooj yim heev rau kev khiav lag luam, tus engineer los ntawm EcooGraphix yuav pab txhim kho thiab muab kev cob qhia tsim nyog los ntawm Online Zoom / Teamview lossis Wechat video thiab kev pabcuam chaw taws teeb. Txhua yam teeb meem lossis lus nug, peb yuav nyob ntawm koj qhov chaw pov tseg 7x24 teev.

Installation Cases:Muaj ntau EcooGraphix CTPs hauv Asmeskas, Canada, UK, Ltalis, Spain, Hungary, Qaib ntxhw, Russia, Mexico, Brazil, Colombia, Ecuador, Egypt, South Africa, Nigeria thiab lwm yam.
