A1 automatic tuag cutter tshuab nrog bleeping

AwtomaticFlat - txajDxws liCsivMachine nrog bloging stripping





 Tshuab Qhia Txog:

AEM-1050Q yog A1 loj tsis siv neeg tuag lub cav nrog daim ntawv pam thiab stripping, m m m mm, yas yas los ntawm 0.2-1 mm.



Tshuab lub zog:

Kev Nyab Xeeb, txuag hluav taws xob, ua tau zoo



1. Lub tshuab yog tus tsav los ntawm Taiwan Teco lub cev muaj zog nrog Panasonic Inverter; Khiav ntawm tag nrho tshuab yog tswj hwm los ntawm PLC Central tswj cov system uas tuaj yeem soj ntsuam qhov xwm txheej ua haujlwm thiab sim cov xwm txheej tsis zoo xws li sau cov kev ua haujlwm. Raws li cov qauv Europe kev nyab xeeb, peb kev tsim qauv tsim nyog los ua kom cov workrity thiab kev nyab xeeb ua ke ua ke.



2. Tau Tse Tswb Lub Cev Ntsig ntawm kev pib ua ntej yuav ceeb toom tus neeg teb xov tooj tawm ntawm thaj chaw tsis nyab xeeb. Cia li ntes tau tag nrho cov txheej txheem

Yog hais tias malfunction, tsis - daim ntawv lossis daim ntawv daig, tus pneumatic clutch yuav cais cov khib nyiab, tiv thaiv cov neeg ua haujlwm thiab khoom siv.



3. NtxivUa ntej -} Packed NtausthiabPub Ntawv Pub & Xa Tsis yog -}} Nres khoomTxo lub sijhawm ntawm stacking, txhim kho lub tshuab ua tau zoo thiab ua kom koj cov nyiaj tau los.



4. XaivEuropean, Nyij Pooj, Taiwan Hluav Taws Xobthiab cov khoom siv pneumatic txhim kho qhov ruaj khov ntawm lub tshuab thiab txo cov zaus ntawm inanimateness.



5. Mainframe thiab Puag Nyias Tau Txais Lub Zog Muaj Zog Spheridal GraphiteHlau Qt500-7uas yog cov txheej txheem tseeb los ntawm cov lej tswj hwm, lav lub tshuab khiav txawb ntev nyob ntev thaum cov kabmob200T lub siab lojCov. Lub cores ntawm platen xovxwm tshuab xws li crankshaft, cab iav thiab yog li ntawd, yog txhua yam kev ua haujlwm siab nrog lub neej ua haujlwm ntev.



6. Lubrication system rau cov chaw tseem ceeb yog nruab nrog cov khoom siv roj rau cov roj nias thiab muaj cov roj tsis txaus ntawm cov roj thiab huab cua.



7. Muab cov lus ntev - sij hawm thiab ua tiavKev Kawm Txuj Ciraws li qhov ua kom zooDawb ceev tseg rau ib xyoos, lav tias peb cov neeg tuaj yeem ua tiav cov thev naus laus zis ntau lawm ntawm peb cov khoom siv. Peb lub tshuab yog nrog tsim qauv zoo meej, raug teeb tsa raug, qhov ruaj ruaj, kev ruaj ntseg siab, suab nrov tsawg.



Cov Lus Qhia Tshwj Xeeb:

Tshuab Qauv	AEM-1050Q Tsis Siv Neeg Tuag Tej Tshuab
Tshuab teeb tsa	Pub rau tshooj lus	√
	Tuag Tshooj	√
	Cua sov phaj	Yam ua tau
	Stripping thiab daim pam	√
	Seem xa tawm	√
Max. Ntawv luaj li cas	1050 × 750 hli
Min. Ntawv luaj li cas	400 × 370 hli
Max. Tuag - Tsis Txiav Loj	1040 × 730 hli
Sab hauv chase loj	1144 × 760mm
Tuag Txiav phaj loj	1080 × 758mm
Pub Cov Pile Qhov Siab	1550mm
Tus Me Nyuam Pile Qhov Siab	1400mm
Txiav txoj cai qhov siab	23.8mm
Txiav Phaj Thickness	5 hli ({{3+2} 4+1 yog yeem)
Tshuag ntau	Ntawv pov thawj: 0.1-2 hli
	Corrugated Ntawv: <4 hli
	Yas Sheet: 0.2-1 hli (Cov Khoom Cua Sov yog xaiv tau)
Tuag - Txiav qhov raug	Tsawg dua los yog sib npaug ± 0.1 hli
Max. Tuag -} txiav siab	320 T
Max. Tshuab Ceev	7500 S/H
MIN Gripper Naj	7 hli
Cua Xa Khoom	0.6-0.7mpa, 0.36m³ / min
Lub Zog Yuav Tsum Tau Ua	3 Theem 380V 50Hz
Lub cev muaj zog loj	11 kw
Qhov Chaw Cua Sov (yog tias rau cov yas txiav, yeem)	24 kw (12 Cheeb tsam cua sov, txhua cheeb tsam yog 2kW)
Tag nrho cov hwj huam (tsis muaj cua sov)	17.8KW



EUROPE cov thev naus laus zis thev naus laus zis feeder lub taub hau rau cardboard thiab corrugated ntawv. Plaub Shows thiab plaub pub, lub kaum ntse ntse tuaj yeem hloov kho raws li qhov deformation ntawm daim ntawv.

Ob {- sided laub - Rub dual {{post}}}}} hom phiaj xwm kev cai. Electromechanical ob daim ntawv ntes. Daim ntawv pub zaub mov tseem ceeb tau hloov pauv tsis tau nres lub tshuab. Super hnav - tiv taus polyurethane daim ntawv conveying cov menyuam.

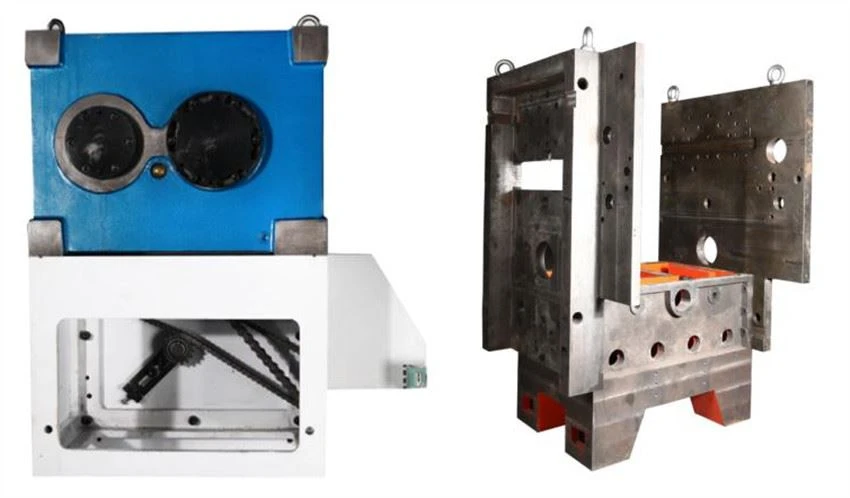

Lub siab - bearing seem yog high eress- Lub zog du500, uas muaj lub zog siab thiab tsis muaj deforms. Alloy steel crankshaft kho nrog cov txheej txheem tshwj xeeb.

Super hnav - tiv taus cov iav iav thiab cab.

Taiwan siab - siab roj twj tso kua roj kab hluav taws xob roj lubrication system. Siab - precision intermittent me ntsis. Nyiv SMM SMC Rtebhary Sib Koom Tes. Precision siab kev tswj hwm kev ua haujlwm.

Tsis siv neeg daim ntawv teem ntaus ntawv, ob {{{{{} txoj kev cua tshuab cov khoom siv kom ntseeg tau tias cov ntawv tuab thiab nyias nyias. Nws xa tawm yog nruab nrog ib lub vaj huam sib luag rau cov neeg siv ntxiv rau cov neeg siv ntxiv {2} Txoj kev ua haujlwm ywj pheej. Daim Ntawv Xa Ntawv Photoelectric kom ntseeg tau cov khoom lag luam zoo. Tsis siv neeg Lifting tswj qhov system rau tus me nyuam lub rooj. Nruab nrog tsis -}} Tsis txhob xa khoom.
