High-Precision Digital Inkjet Label Printing System

High-Precision 1200dpix 1200dpi Digital Inkjet Label Printing System

Qauv: Ecoo Label Modular 330 HD





Nta:

1 Cov tiam tshiab ntawm cov khoom siv high-precision printhead, qhov kev daws teeb meem siab tshaj plaws mus txog 1200dpix1200dpi.

2 Modular ntau lawm txheej txheem collocation ua tau raws li txoj cai rau daim ntawv lo luam ntawv.

3 Cov qauv sib xyaw ua ke, tuaj yeem hloov kho raws li cov txheej txheem tsim khoom tiag tiag.

4 Txheej, Printing, Varnishing, Foil-stamping, ib-nias ntau lawm.

5 High efficiency digital label printer with a me cover area.





Cov txiaj ntsig tseem ceeb:



ruaj khov high-precisionprinting unit

High-precision printhead, tuaj yeem muab ntau yam xim xaiv, kom ua tiav cov xim zoo nkauj dua, kev luam ntawv siab dua thiab ntau yam ntawm cov ntawv thov tshwj xeeb, kom tau raws li cov kev xav tau luam ntawv sib txawv. Kev luam ntawv siab tshaj plaws mus txog 70m / min. ntau hom kev luam ntawv rau ntau yam kev siv. Txog 9 xim raws, muab ntau yam xim xaiv. Kev teeb tsa tus qauv: CMYK + Dawb (yeem muaj raws li ob npaug Dawb), tuaj yeem ntxiv 3 pawg ntawm cov xim xim.

Tshiab tiam printheads rau 1200dpi

Cov tiam tshiab tuaj txawv teb chaws high-precision printheads muaj lub neej ntev dua, kev daws teeb meem siab tshaj plaws txog 1200x1200dpi. Nws txhim kho tas mus li, high-speed, high-quality printing stability. Kev hloov xim xim yog ntau tshaj li qhov muaj peev xwm ua tiav cov ntsiab lus siab, muaj tseeb xim luam ntawv zoo.

Agfa Asanti software workflow system (Powered los ntawm Agfa Asanti)

Yooj yim rau siv, Asanti tso cai rau koj taug qab txhua cov kauj ruam ua ntej, thiab kev ua haujlwm ntse pom zoo ua rau koj hloov kho ntawm cov xwm txheej tam sim no. Cov thev naus laus zis tshiab tshaj plaws, Asanti txais qhov tseeb Adobe PDF tshuab luam ntawv (APPE), ua kom ntseeg tau, ua haujlwm zoo, ua tiav cov ntaub ntawv. Built-in Preflight Module, Tsis siv neeg tshawb xyuas cov ntaub ntawv txhua lub sijhawm kom ua raws li cov kev cai luam ntawv.

Zoo ib puag ncig tiv thaiv UV inks

Ua tsaug rau cov qauv zoo tshaj plaws, General Inkjet Printing's UV inks tuaj yeem ua tiav eco-friendly kev ua tau zoo nrog kev ruaj ntseg zoo. UV-LED curing thev naus laus zis tsis yog tsuas yog txo lub sijhawm ziab tab sis kuj txo qis kev siv hluav taws xob, yog li txuag nyiaj ntxiv hauv cov nqi tsim khoom. UV inks tsis muaj cov kuab tshuaj, ua rau cov ntawv luam tawm tsis tshua muaj nqi thiab qis dua li cov luam tawm ib txwm muaj. Raws li UV LED teeb tsis muaj mercury, tsis tas yuav muaj mercury pov tseg lossis cov nqi cuam tshuam. Ntau yam ntawm cov khoom siv sib raug zoo los ua kom muaj kev sib txawv ntawm kev lag luam





Specification:

Qauv	Ecoo Label Modular 330 HD
Tshuab luam ntawv	Piezoelectric Inkjet
Kev luam tawm	Yob mus Yob, Ib Sab
Xim Configuration	CMYK, CMYK+W, CMYK+W+OGV
Tus naj npawb ntawm Channel	9
Qhov siab tshaj plaws	70m / min
Kev daws teeb meem	1200 x 1200 dpi
Hom cwj mem	UV Ink
Txoj kev kho	UV LED
Media dav	110-330 hli
Maximum Print Dav	320m
Media Thickness	50-400um
Hom Media	PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, thiab lwm yam
Qhov siab tshaj plaws Media Roll Diameter	600 hli
Fais fab mov	380V
Hwj chim	30 kwv
Compressed cua	>6.5MPa
Kev siv cua	>10L / min
Kev ua haujlwm ib puag ncig	Kub: 20 degree -27 degree, Humidity: 40%-70% txheeb ze humidity
Skew Adjustment System	yog
Electrostatic plua plav tshem tawm	yog
Dej Txias System	yog

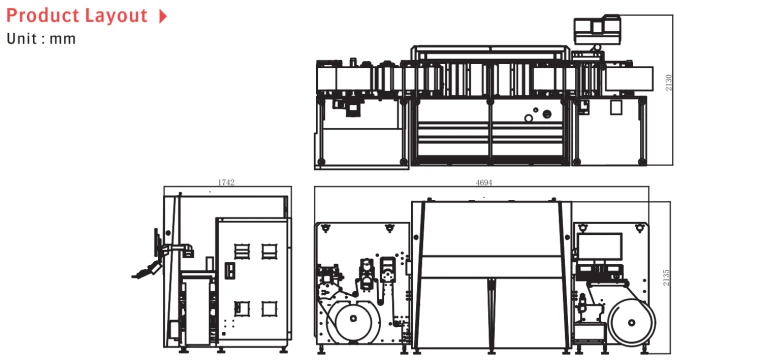

Layout:
